How's Your Server Room?
The server room temperature is 22 C
The humidity is 31%
The room was entered at 14:28
The door is not properly secured
An email door alert has been received
Server 2 local environment over 40C
Administrator has been advised by SMS
Environment status remotely reviewed
Appropriate actions taken
All events and alerts have been logged
He can relax...
Thanks to NetCommander's
Remote monitoring solutions
You can monitor and control assets worldwide



The NetCommander Server and Computer Room Environment Monitoring Solution

NetCommander is a web accessible network device for monitoring the environment and equipment alarm status in buildings, server and remote equipment rooms.

NetCommander detects threatening conditions such as fire, flood or over temperature before equipment in server rooms is damaged or destroyed. A wide range of sensors, such as temperature, humidity, water, condensation, smoke, carbon monoxide, door and glass break can be incorporated to provide a complete environment monitoring and control solution.

NetCommander combines a powerful web based GUI with feature rich functionality such as Scalability, IP Camera support, SNMP v2, Mobile SMS text modem, Interchangeable interface options, a serial device controller plus many more... The NetCommander GUI is served to provide remote encrypted access to the controller form anywhere in the world. Users can access real time data and system status via their browser, or receive user defined alert messages via email and SMS.

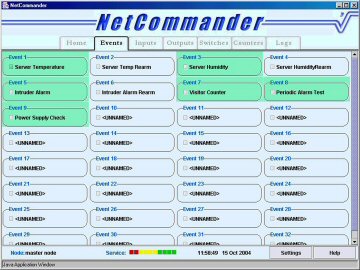

At the heart of the flexible software is an advanced event scheduler. It allows the user to manage the causes, the effects, the count of, and the states of up to 32 events and alarms from the various external I/O devices. Logic operations can be performed on all events and a 365-day / time scheduler, further enhances the scheduler flexibility.

The user can choose to be alerted either audio-visually or by email / SMS text when a device's environment condition is out of range. All alarms alerts and events can be logged via the event logger, which time stamps and details each event log.


Technical Specification
Features
Ethernet attached standalone controller
No client software required
Powerful web based interface
Real time information and status
Advanced event scheduler
Email / SMS text alarms and alerts
16 analogue / digital inputs
8 analogue / digital outputs
Up to 8 switch outputs
Temperature and humidity
Triggered event logging
4 & 8 port expansion interfaces
On board data storage
Sensors
Temperature0-50C 0.7C
Humidity10-90% 6%
Smoke
Carbon monoxide
Water
Door

General
Operating Temp0 to 40 C
Humidity20-80% non-condensing
Power Supply240v AC / 12v DC
Dimensions164mm x 104mm x 55mm
Weight500g
